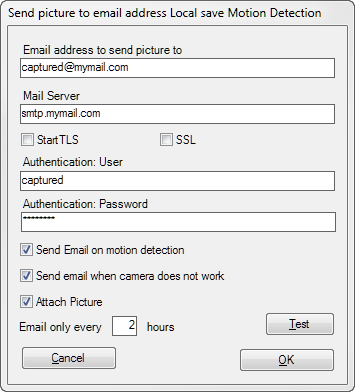

This configuration form exists for both Local Save Motion Detection and FTP Motion Detection

Mail Server:if your mail server does not use the standart port 25, use the following form:

mail-server:port-number

eg

smtp.mymail.com:995

StartTLS / SSL: use these checkboxes when your smtp server requires a encrypted connection to send mail

Authentication User/Password: enter the login information for the smtp server if required

Send Email on motion detection: check this to activate email on motion detection

Send email when camera does not work: check this if you want to be notified about camera failures

Attach Picture: check this if you want the image with detection motion to be included in the email

Email only every x hours: enter a value > 0 if you don't want emails to be sent on every motion detected. Fractions of hours are ok (eg. 0.25 = 15 minutes)

Test: click here to test your settings
