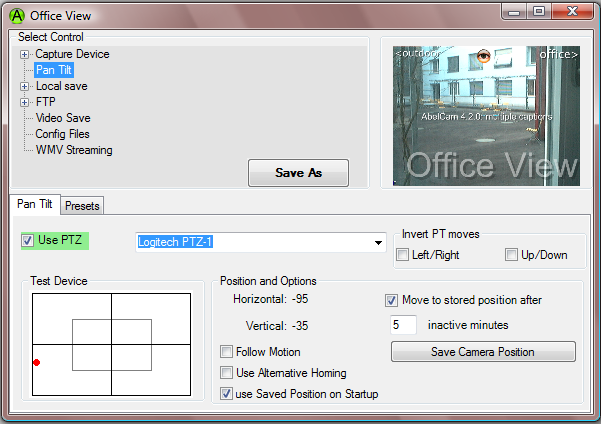

Capture Device Description Size & Orientation Caption Image Overlay Zoom Pan Tilt Local Save Email on Motion Detection FTP Config Files WMV Streaming Effects Video Save TV Tuner Web Video URL Pan Tilt![]() Use PTZ: check this to activate the PTZ device PTZ droplist: select the PTZ device to use with this capture device. Virtual PTZ is available for all capture interfaces. Invert PT moves: check these checkboxes to invert lef/right and/or up/down moves Test Device: click on this control to move the PTZ device. The red dot reflects the current position. Horizontal/Vertical: current PTZ position Follow Motion: check this for the PTZ device to follow detected motion. Use Alternative Homing: check this to use AbelCams internal homing sequence instead of the drivers homing function use Saved Position on Startup: check this for the camera to move to the predefined PTZ position when started. Move to stored position after x minutes: check this for the camera to move to the stored predefined PTZ position when it has not been moved for x minutes. This avoids situations where the camera is looking at a boring location or into the sun. Save Camera Position: click this button to use the current PTZ position as predefined position. For permanent storage you need to hit the Save button afterwards. LED Off is available only for the Logitech Sphere / Orbit MP and AF cameras. IP PTZ is covered in the Wiki Presets Use Presets: check this to show the presets on the web pages generated by the builtin web server New: click here to create a new preset Up/Down Arrows: move the selected preset up/down Delete: delete the selected preset Name: name of the preset to be shown on the web pages Pan: horizontal position Tilt: vertital position Zoom: Zoom value Save: Save this Preset
